Magnetic Incremental
Non-contact magnetic measurement with standard 5 µm resolution in 4x mode and published repeatability of ±5 µm.
OPKON Linear Scale Partner
Precision Feedback.
Practical Replacement Support.
Magnetic linear encoders for press brakes, with application review and replacement matching for many Heidenhain, Givi Misure and other incremental linear-scale systems.
MPS SeriesMagnetic Linear Incremental Encoder
Press Brake Position Feedback
A Modern Scale Platform With Multiple Configuration Options

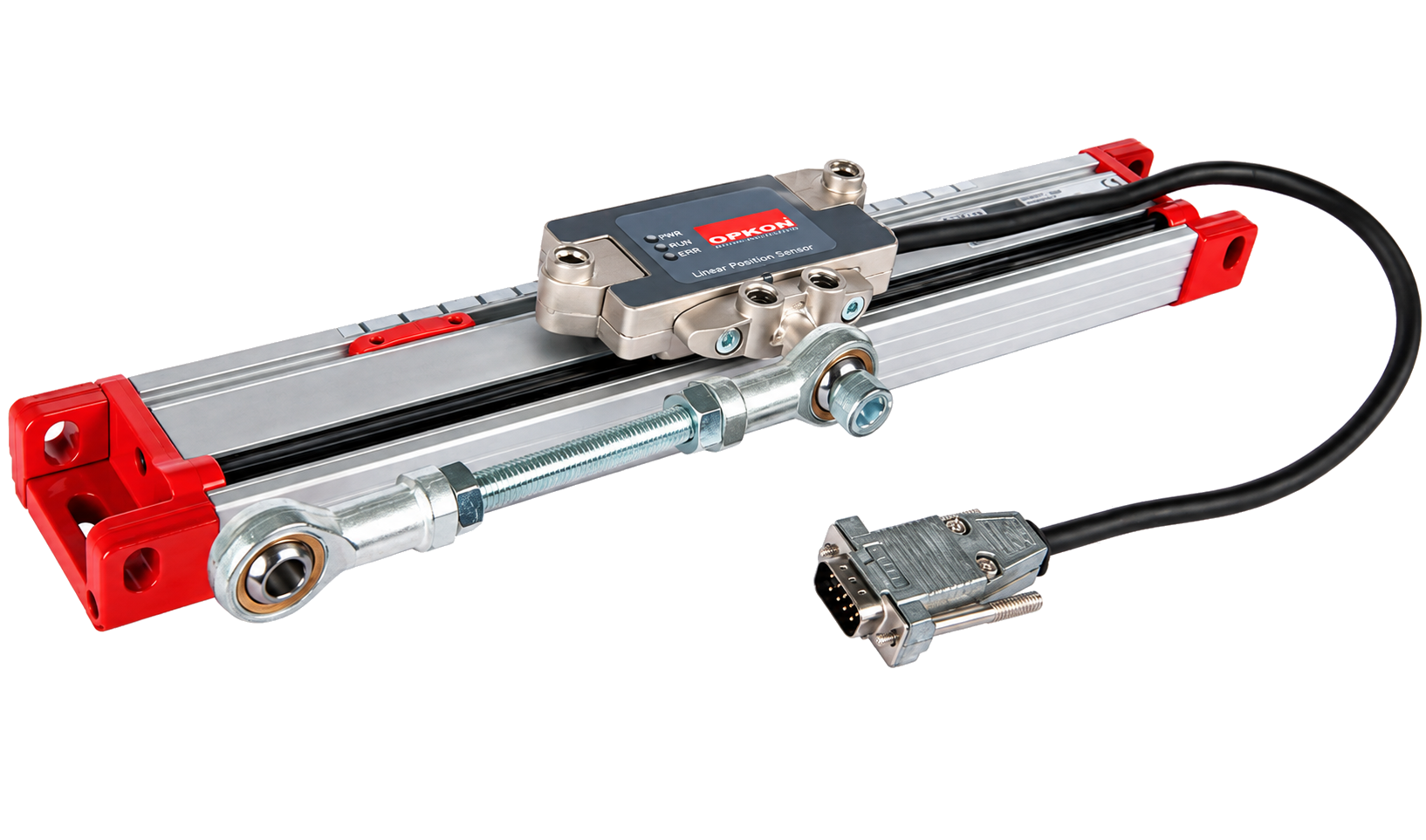

The OPKON MPS is a non-contact magnetic incremental encoder developed for press-brake applications. Branin Automation helps identify the required stroke, resolution, output, voltage, reference signal, connector and mounting arrangement before a replacement is ordered.
120–720 mmAvailable measurement strokes
5 µm StandardResolution in 4x mode, with additional options
Up to ±20 µmPublished accuracy specification
IP65Anodized aluminum construction
Replacement Scale Applications
Matching More Than the Mounting Length
OPKON scales can often provide a replacement path for Heidenhain, Givi Misure and other incremental linear scales. A reliable replacement requires confirmation of the complete electrical and mechanical configuration—not only the overall length.
01Stroke and dimensionsUseful stroke, mechanical travel, total length and mounting geometry.
02Signal compatibilityResolution, TTL, line-driver, high line-driver or push-pull output requirements.
03Power and referenceSupply voltage, reference-mark type and control-interface requirements.
04Connector and pinoutDB9 or round connector, cable arrangement and machine-side wiring.
Replacement suitability must be verified for the specific machine, control and original scale. Brand names are referenced only to describe potential replacement applications; OPKON products are not represented as universal drop-in replacements.
MPS Technical Overview
Configurable Electrical and Mechanical Options
The correct configuration is selected around the original machine feedback requirements.
2.5 to 25 µm
Available selections include 2.5, 5, 10, 12.5, 20 and 25 µm in 4x mode, depending on configuration.
TTL & Line Driver
Standard TTL and line-driver configurations, with high line-driver and push-pull options available.
5 VDC or 8–24 VDC
Standard 5 VDC supply with an optional wider 8–24 VDC supply range.
DB9 or M16
DB9 cable arrangements and an M16 eight-pin round connector option are documented in the product literature.
Industrial Protection
IP65 construction, operating temperature from −20°C to +80°C and displacement speed below 3 m/s.
Application and Installation Support
From Scale Identification Through Machine Setup
Branin Automation can help evaluate the existing scale, confirm the required OPKON configuration, review wiring information and support installation or machine calibration as required.
- Press-brake Y1/Y2 ram-position feedback applications
- Replacement review for obsolete or difficult-to-source scales
- Connector, pinout and output-signal verification
- Mechanical mounting and stroke review
- Installation, referencing and calibration support
Information That Speeds Up Matching
Send clear photographs of the original scale and label, the machine model and serial number, control model, scale stroke and total length, connector photos, wiring diagrams, and any available original datasheet.
View Matching Checklist ›Request a Scale Match
Send the Original Scale Information
The more complete the information, the faster we can determine whether an OPKON configuration is suitable.
01Machine identificationManufacturer, model, serial number, tonnage and working length.
02Original scaleManufacturer, model number, label photo and original documentation.
03Mechanical dimensionsUseful stroke, overall length, mounting-hole locations and linkage arrangement.
04Electrical informationSupply voltage, resolution, output type, reference signal, connector and pinout.
05Machine controlControl manufacturer and model, axis designation and relevant schematic pages.
06Service requirementPart-only request, installation support, calibration or complete onsite service.
Product Literature
OPKON MPS Datasheet
The two-page datasheet includes mechanical dimensions, stroke selections, electrical outputs, connector pinouts and the model-ordering procedure.
Need a Replacement Linear Scale?
