New CNC Press Brakes for North America

Weldor Press Brakes.
North American Sales & Service.

Machine sales, application review, configuration, CYBELEC control options, installation, commissioning, operator training, warranty coordination and long-term field service through Branin Automation.

Request a Machine Quote › Download Brochure

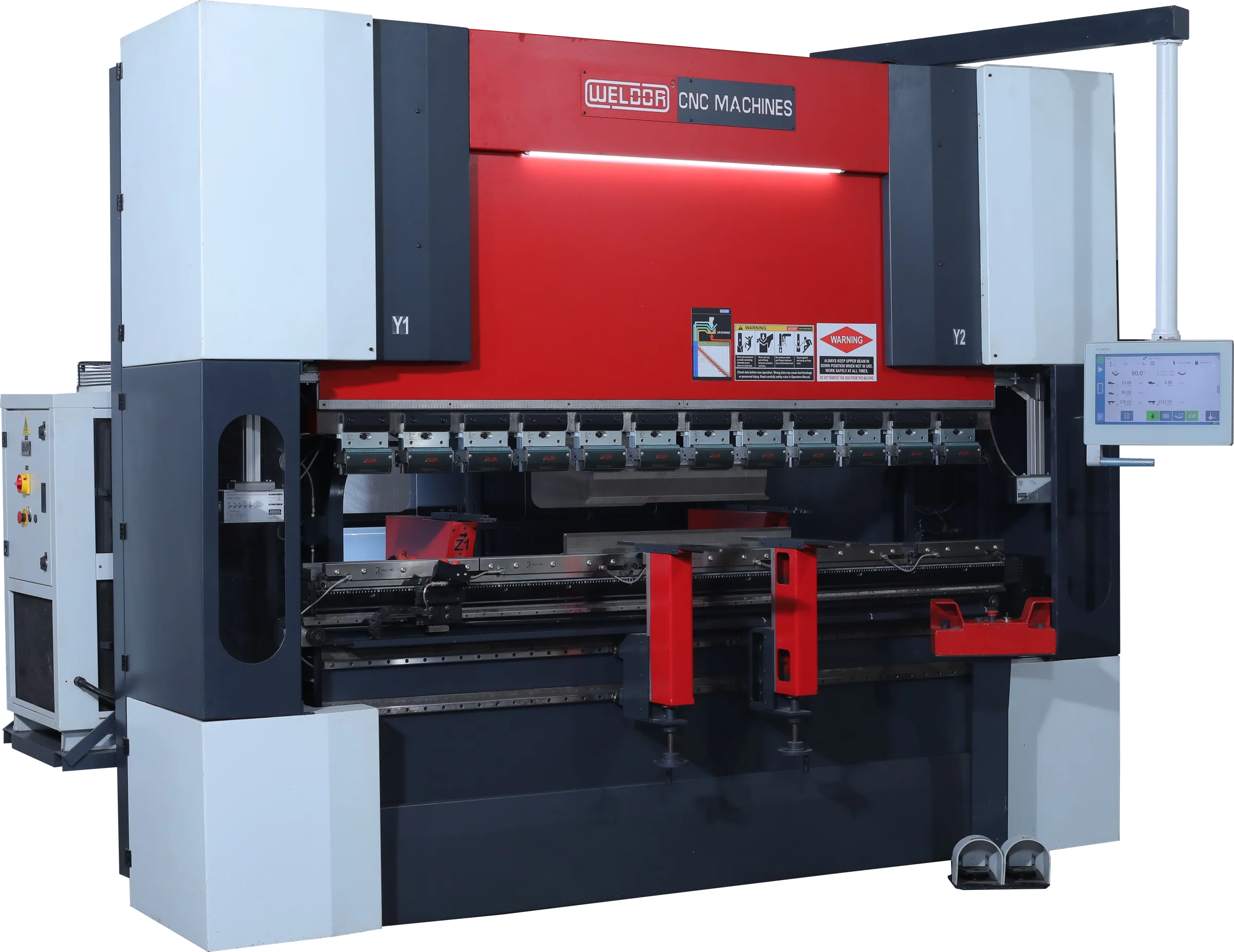

Weldor Premium Series CNC synchronized hydraulic press brake

A complete machine solution - not simply a machine shipment

Specified for the Work. Commissioned for Production.

Branin Automation works with the customer to define tonnage, bending length, tooling style, backgauge axes, crowning, control, safeguarding and production options. The selected machine is then supported through delivery planning, installation, setup, training and service.

Application SizingMaterial, thickness, bend length, tooling and production requirements.
Machine ConfigurationBackgauge axes, crowning, control, tooling interface and options.
Installation & TrainingLeveling, commissioning, run-off and operator instruction.
Sales, Warranty & ServiceBranin Automation is a North American point of contact for machine sales, warranty coordination and service.
Front view of a Weldor Premium Series hydraulic press brake

Premium Series CNC Synchro Press Brake

Modern Forming Capability With Configurable Automation

The Premium Series is designed around synchronized hydraulic ram control, modern CNC programming and configurable machine options. Increased open height and stroke support a broad range of tooling and deeper box-forming applications.

01Synchronized Y1/Y2 controlClosed-loop ram positioning for repeatable bending and parallelism.
02Crowning choicesPassive crowning or CNC hydraulic crowning selected around machine capacity and application.
03Production-oriented designErgonomic access, narrow frame dimensions and configurable tooling systems.
04Expandable configurationBackgauge, control, sheet-support, angle-correction and safeguarding options.

Configuration Options

Build the Machine Around Your Parts and Process

Final equipment is quoted to the required capacity, bend length, control functions, axes and production options. Availability and specifications are confirmed for each project.

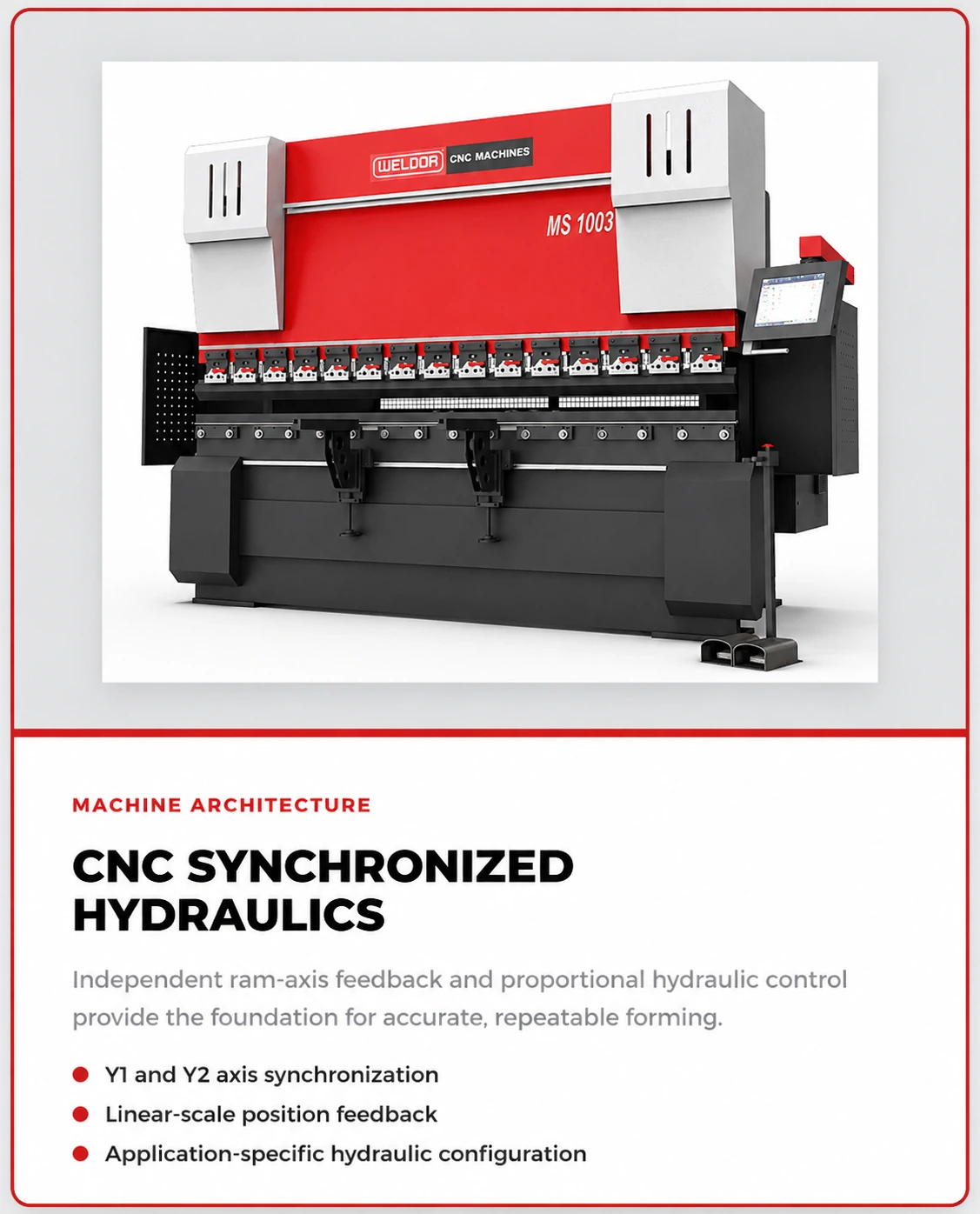

WELDOR MS Series press brake with CNC synchronized hydraulic architecture
Machine Architecture

CNC Synchronized Hydraulics

Independent Y1 and Y2 ram-axis control provides accurate, repeatable positioning throughout the bending cycle. Linear-scale feedback continuously monitors ram position, while proportional hydraulic control maintains synchronization and forming consistency across the full working length.

Each hydraulic configuration can be engineered around the selected machine capacity, tooling, production requirements and level of automation.

  • Independent Y1 and Y2 axis synchronization
  • High-resolution linear-scale position feedback
  • Proportional hydraulic control
  • Accurate and repeatable ram positioning
  • Application-specific hydraulic configuration
  • Compatible with advanced CNC control options

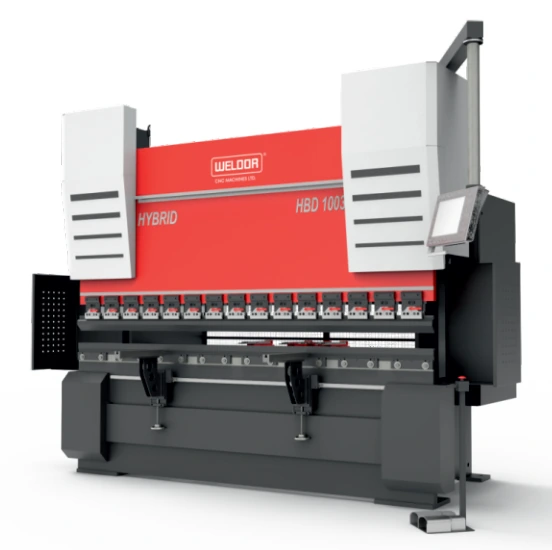

WELDOR HBD Series hybrid CNC press brake
HBD Series

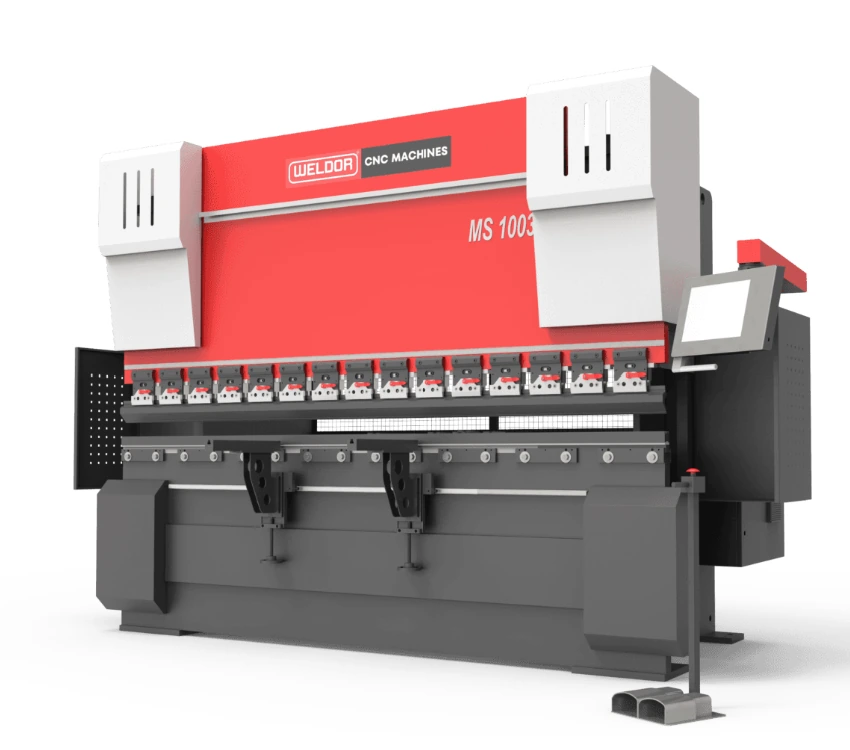

WELDOR MS Series CNC hydraulic press brake
MS Series
Press Brake Series

HBD Hybrid & MS Main-Motor Servo Series

The HBD and MS product lines provide efficient CNC press brake configurations for different production priorities and duty cycles.

  • Energy-efficient servo-based drive options
  • Fast cycle times and repeatable forming
  • CNC synchronized ram control

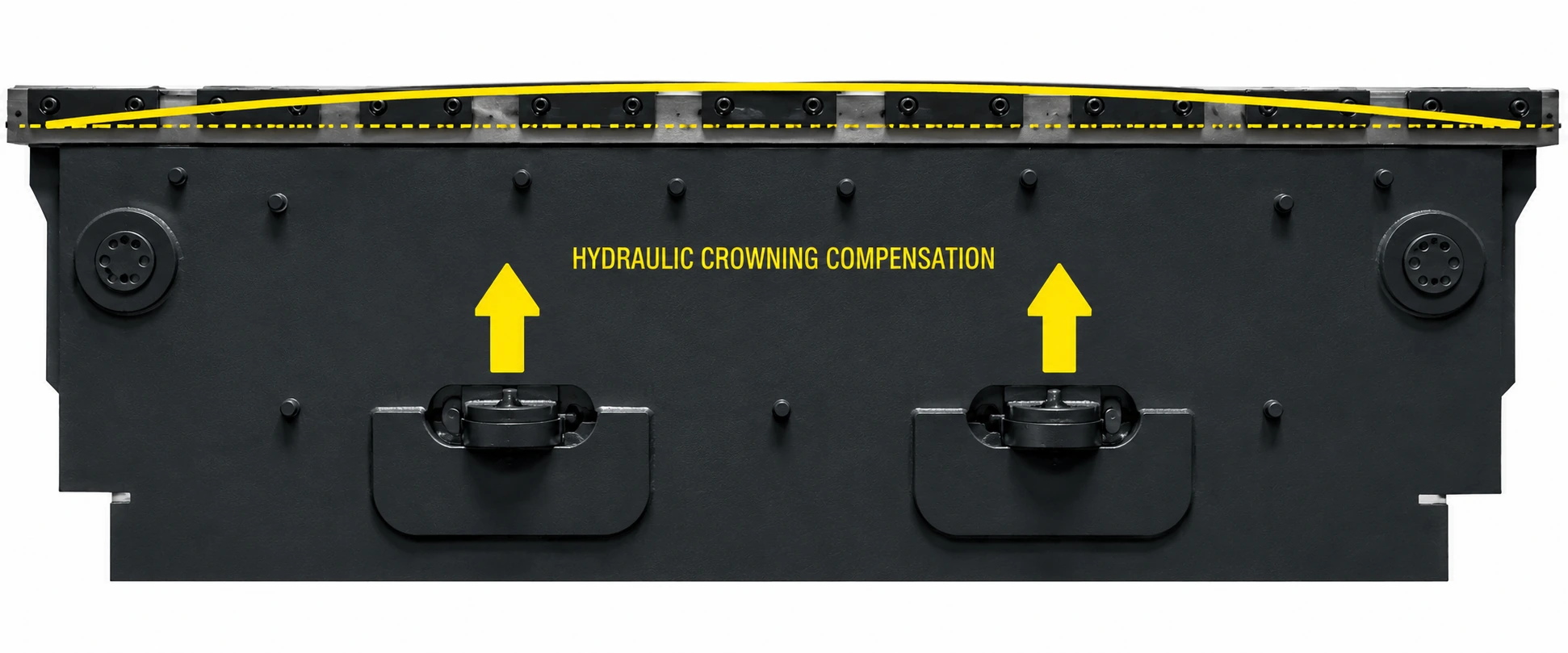

WELDOR hydraulic crowning compensation system
Hydraulic Crowning

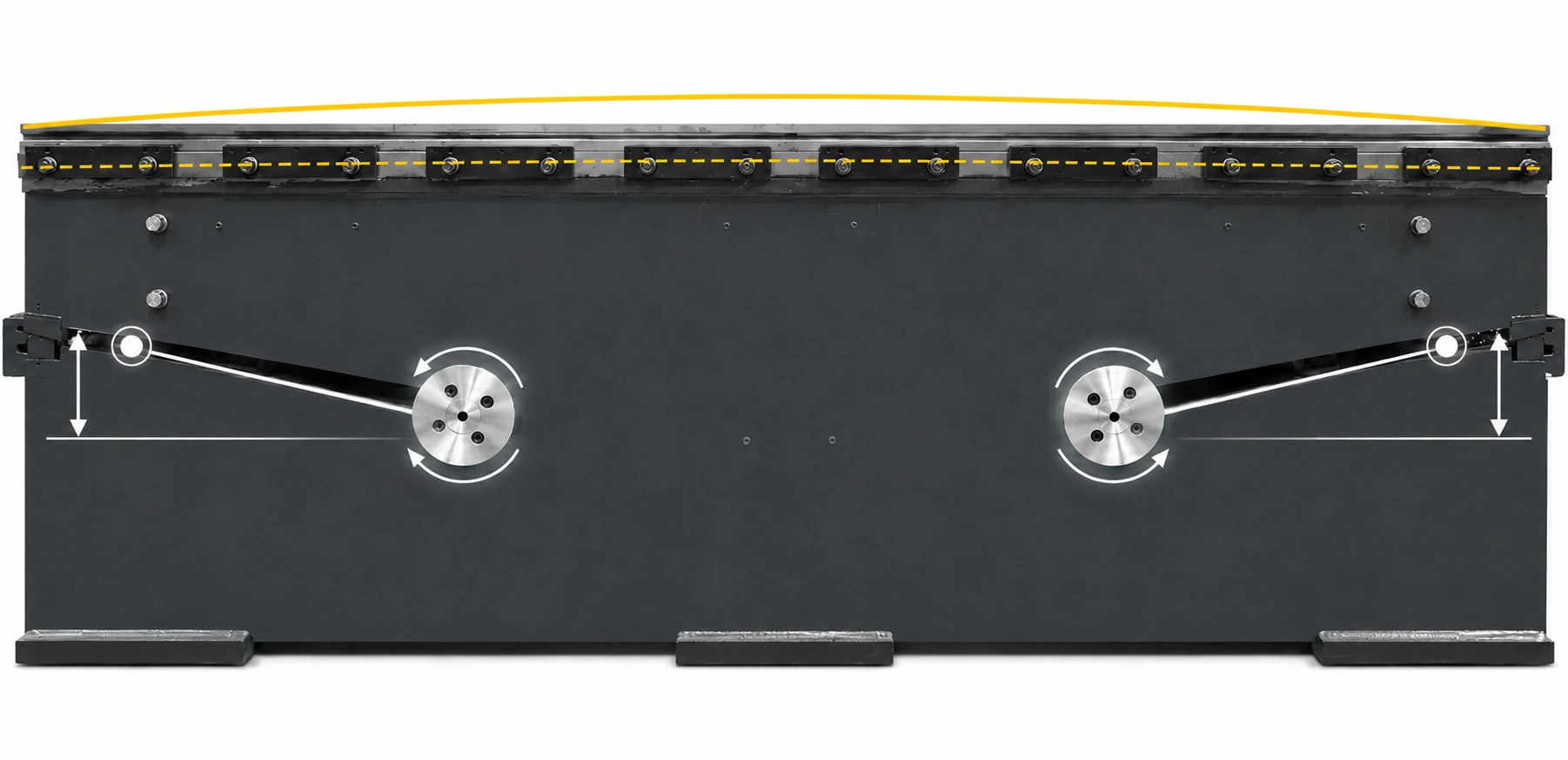

WELDOR passive crowning compensation system
Passive Crowning
Angle Consistency

Passive or Hydraulic Crowning

Crowning compensates for beam deflection to improve angle consistency across the working length.

  • Passive crowning on suitable models
  • CNC hydraulic crowning options
  • Configured to capacity and application

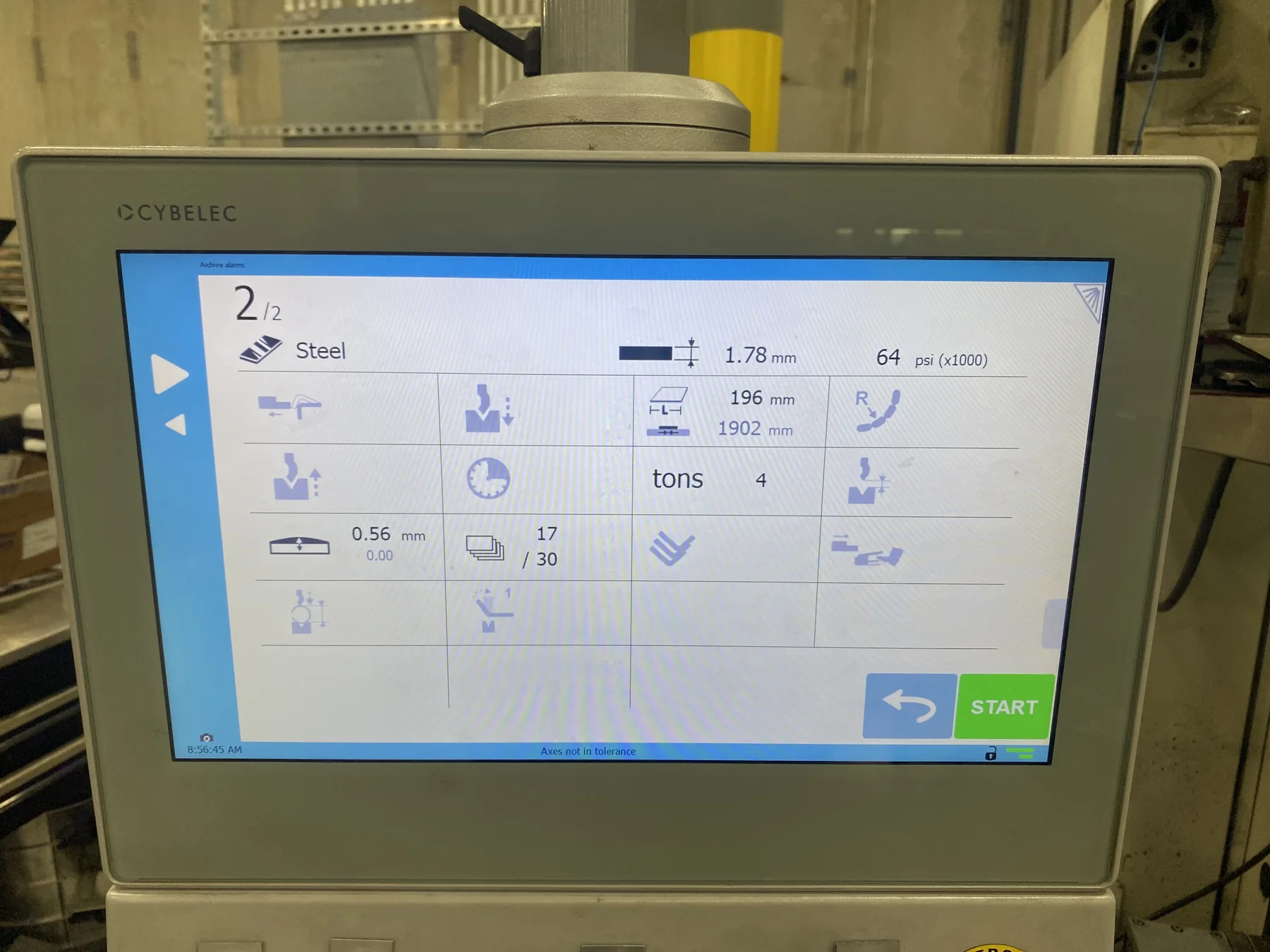

CYBELEC touchscreen press brake control
Programming & Control

CYBELEC CNC Options

Control choices can include the CybTouch 15PS and VisiTouch family, depending on axes, programming workflow and visualization requirements.

  • Graphical profile programming
  • Automatic bending-sequence calculation
  • Advanced multi-axis configurations

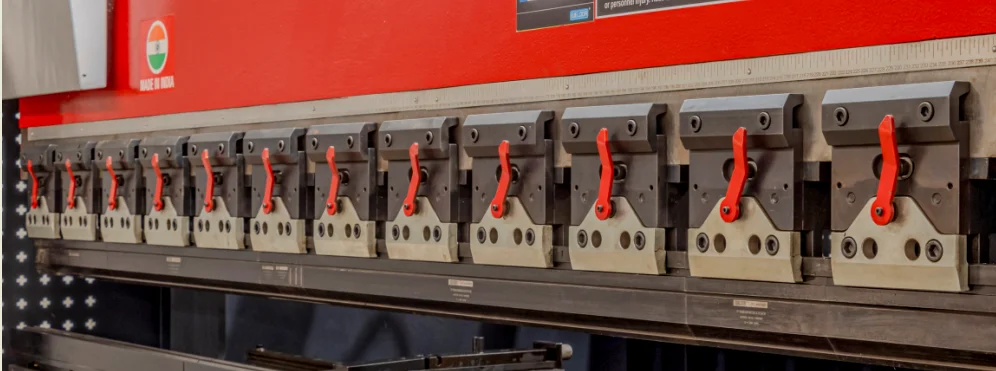

Weldor quick-release press brake punch holders
Tooling Interface

Quick-Release or Hydraulic Clamping

Standard quick-release punch holders and optional hydraulic clamping can be selected around tooling style and changeover requirements.

  • Faster tool setup
  • American-style tooling configurations available
  • Hydraulic upper and lower clamping options

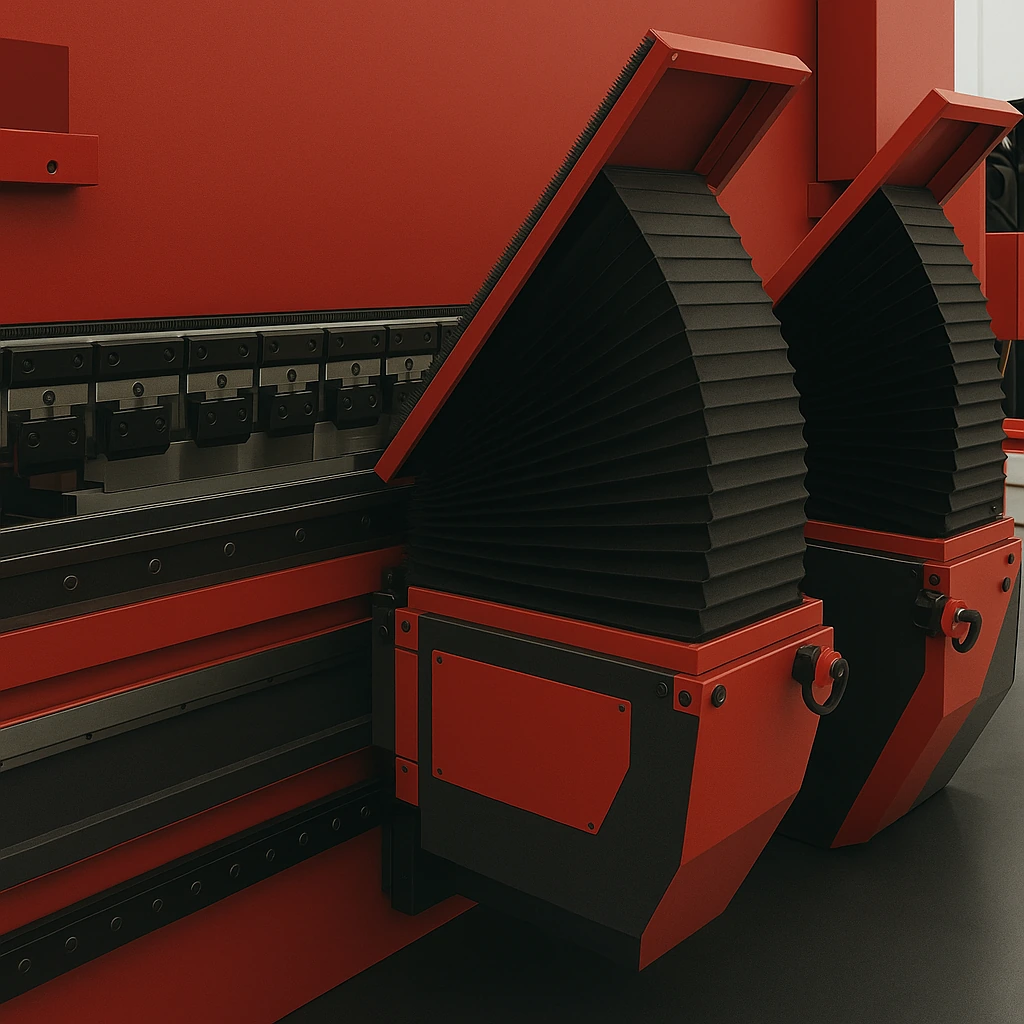

WELDOR automatic sheet followers supporting material at a press brake
Part Handling

Sheet Followers & Advanced Options

Heavy or difficult parts can be supported with automated sheet followers, while angle-measurement systems can assist first-part accuracy.

  • Automated sheet support
  • Laser angle-correction options
  • Reduced operator handling demands

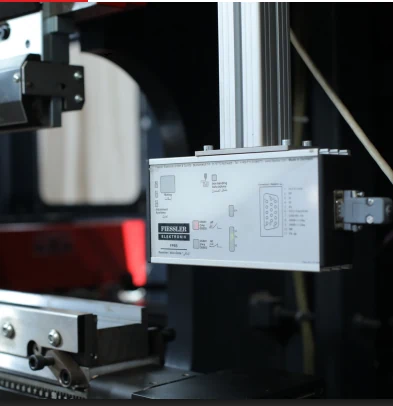

WELDOR press brake laser guarding and operator protection sensor
Operator Protection

Application-Specific Safeguarding

Safeguarding can be configured around the machine, tooling and operating method, including laser guarding and safety-control integration.

  • Front and rear access protection
  • Safety circuit integration
  • Commissioning and operator training

Backgauge Configurations

From Straightforward Positioning to Complex Part Control

The Premium Series brochure lists backgauge arrangements ranging from a basic X-axis system through independent multi-axis configurations. The correct layout depends on part geometry, flange sequence and production goals.

2 AxisX, R

Depth positioning with vertical gauge adjustment.

4 AxisX, R, Z1, Z2

Independent lateral finger positioning for varied part widths.

5 AxisX, X', R, Z1, Z2

Independent depth capability for tapered or asymmetric parts.

6 AxisX1, X2, R1, R2, Z1, Z2

Highly configurable independent positioning on specific applications.

Weldor press brake showing the machine and backgauge area

Representative Standard Models

Representative Premium Series Capacities

The table below provides representative Premium Series reference configurations. Current specifications for every WELDOR series are confirmed in the U.S.-market brochure and the project quotation.

ModelForceWorking LengthStrokeDaylightX Travel
PS 502050 ton2,000 mm200 mm400 mm500 mm
PS 802580 ton2,500 mm200 mm400 mm600 mm
PS 1003100 ton3,100 mm200 mm400 mm600 mm
PS 1203120 ton3,100 mm200 mm400 mm600 mm
PS 1503150 ton3,100 mm225 mm450 mm600 mm
PS 2003200 ton3,100 mm275 mm525 mm600 mm

Specifications and available equipment are subject to confirmation and may change as designs are improved. A project quotation governs the supplied machine.

WCM WELDOR CNC Machines North American Sales

North American Sales & Support

WELDOR CNC Machines Supported by Branin Automation

Branin Automation supports WELDOR CNC Machines throughout the North American market. We work directly with customers to evaluate applications, select the appropriate press brake configuration, coordinate machine delivery and installation, and provide ongoing technical support.

Our experience with CNC press brakes, hydraulic systems, machine controls, safety equipment and metal-forming applications allows us to support customers throughout the complete machine lifecycle—from initial planning and specification through installation, training, service and future upgrades.

01Application review and machine selectionPart requirements, machine capacity, backgauge axes, tooling, crowning and production options.
02Delivery, installation and commissioningSite planning, rigging coordination, leveling, startup, run-off and production verification.
03Training, warranty and service coordinationOperator instruction, warranty support, parts coordination, remote assistance and onsite service.
04Long-term machine supportPreventive maintenance, troubleshooting, control support, safeguarding and future upgrades.

For WELDOR machine information, pricing, application assistance or service support, contact Branin Automation.

Request a WELDOR Quote ›Download Brochure

Machine Project Process

From Part Requirements to Production

A defined process helps ensure the quoted machine matches the application and the installation is prepared before the equipment arrives.

01

Application Review

Part drawings, material, bend lengths, thicknesses, tooling and production goals.

02

Machine Configuration

Tonnage, length, axes, crowning, control, tooling interface and safety options.

03

Formal Quotation

Defined equipment, responsibilities, delivery terms, installation scope and warranty terms.

04

Delivery Planning

Shipping, site readiness, electrical requirements, unloading and rigging coordination.

05

Installation & Run-Off

Placement, leveling, commissioning, debugging and production verification.

06

Training & Support

Operator instruction followed by warranty coordination and long-term service.

Cover of the WELDOR and Branin Automation U.S. press brake brochure

Product Literature

WELDOR Press Brake Product-Line Brochure

Review the current U.S.-market brochure covering the N, S, MS, HBD and Premium Series, along with controls, tooling, backgauges, crowning, sheet followers, laser angle correction and representative inch-based specifications.

Open PDF Brochure › Resources & Downloads

Owner and service documents: Manuals, parts lists and hydraulic documentation should be matched to the specific machine model, serial number and revision. Contact Branin Automation for the correct documentation.

Information for a Machine Quote

Tell Us What You Need to Bend

Part details allow us to size the machine and recommend the right axes, tooling, crowning and options rather than quoting a generic press brake.

01Material and thicknessMild steel, stainless, aluminum or other material and maximum thickness.
02Maximum bend lengthLongest part, bend line and any off-center or segmented loading.
03Part drawingsRepresentative 2D drawings, STEP files or photographs of current parts.
04Tooling preferenceAmerican, European or existing tooling that must be reused.
05Backgauge needsPart geometry, flange sequence and required independent axes.
06Delivery locationPlant location, access, electrical service and anticipated installation timing.

Planning a New Press Brake?

Start With the Parts You Need to Produce.

Branin Automation will help define the machine, options, installation and support package.
Request a Quote ›💬 WhatsApp
